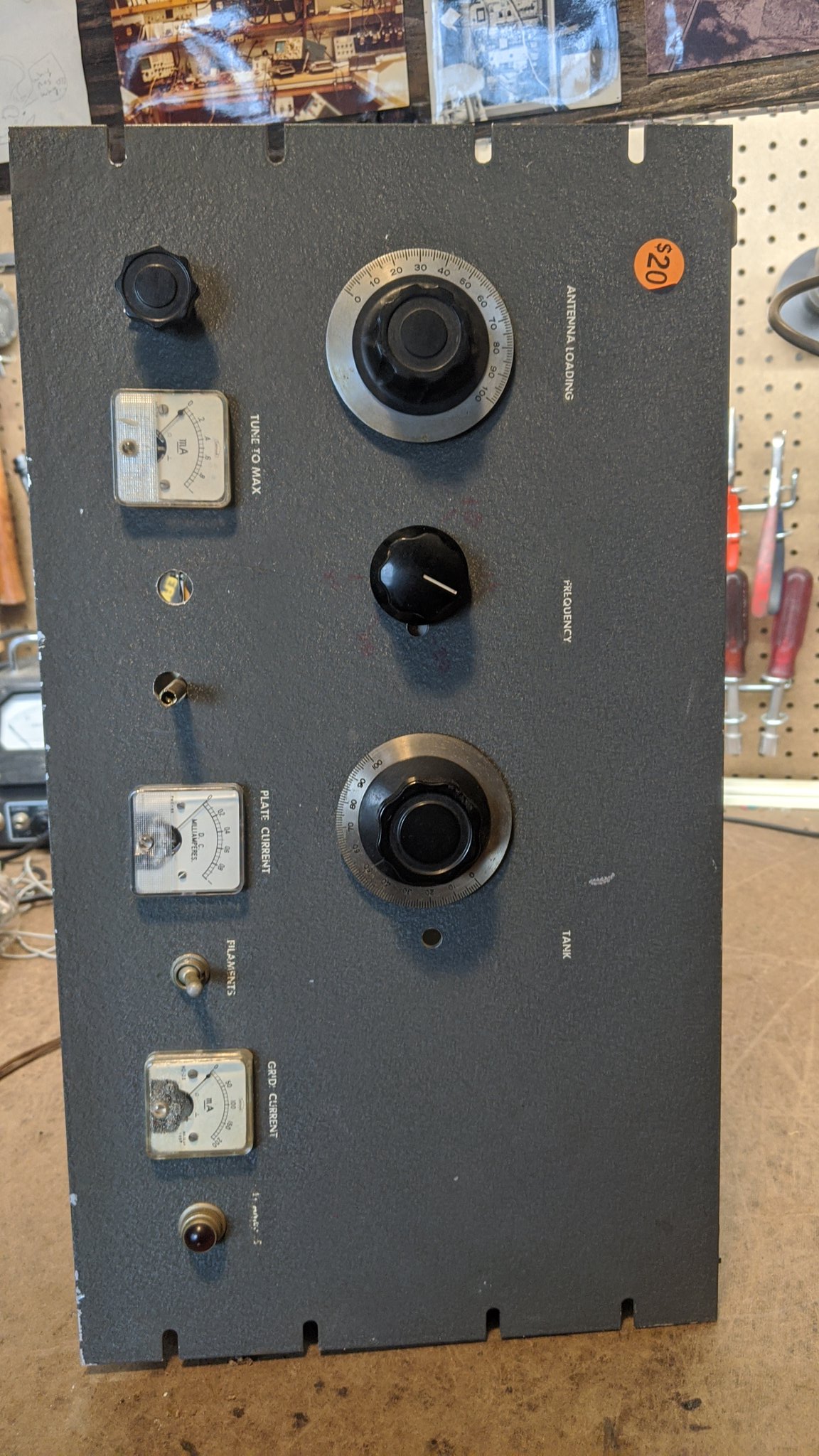

I found this under a table at a hamfest for half price... $10. I knew I could use the power transformer at least.
811A Linear Amplifier
I found this under a table at a hamfest for half price... $10. I knew I could use the power transformer at least.

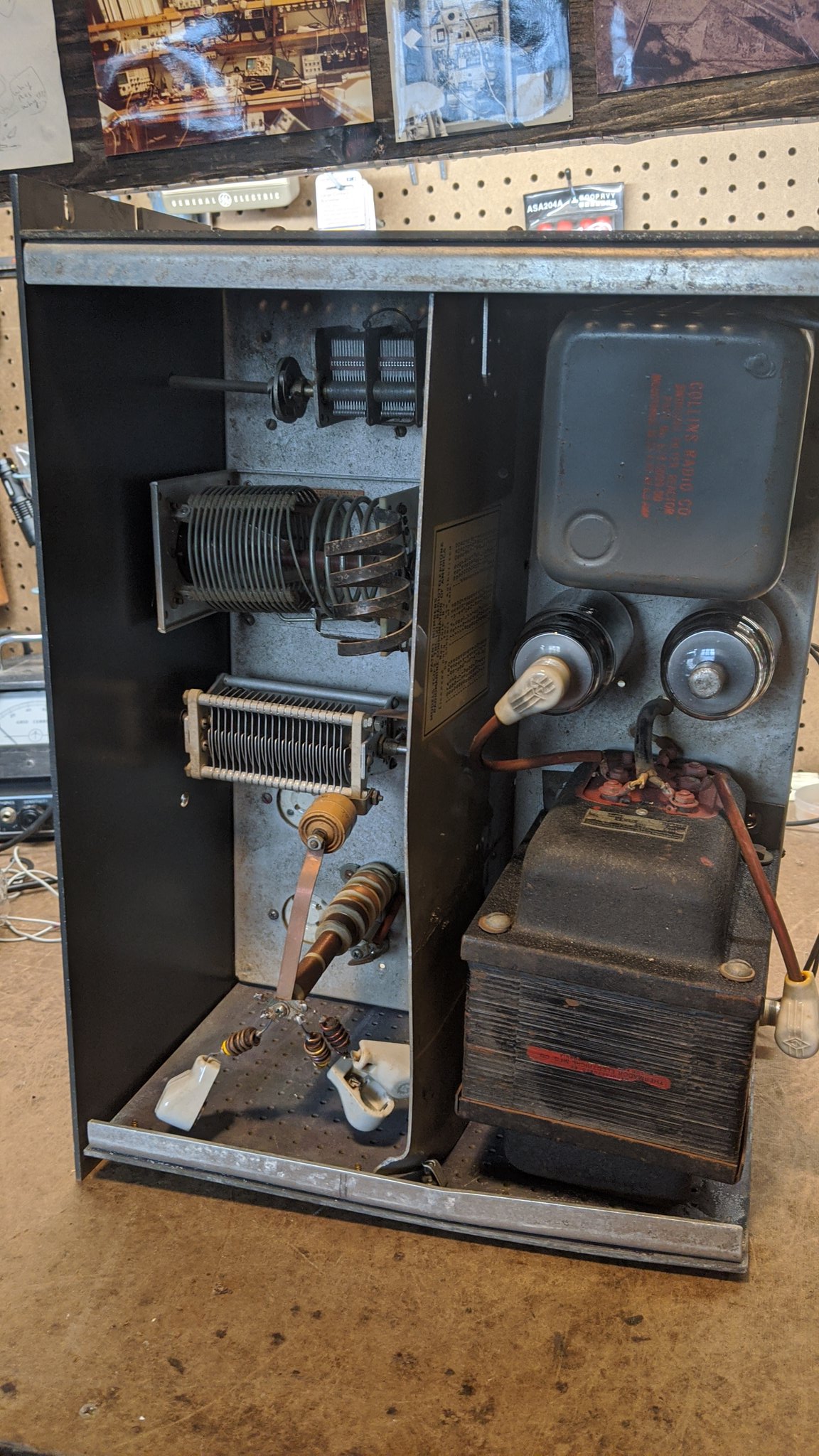

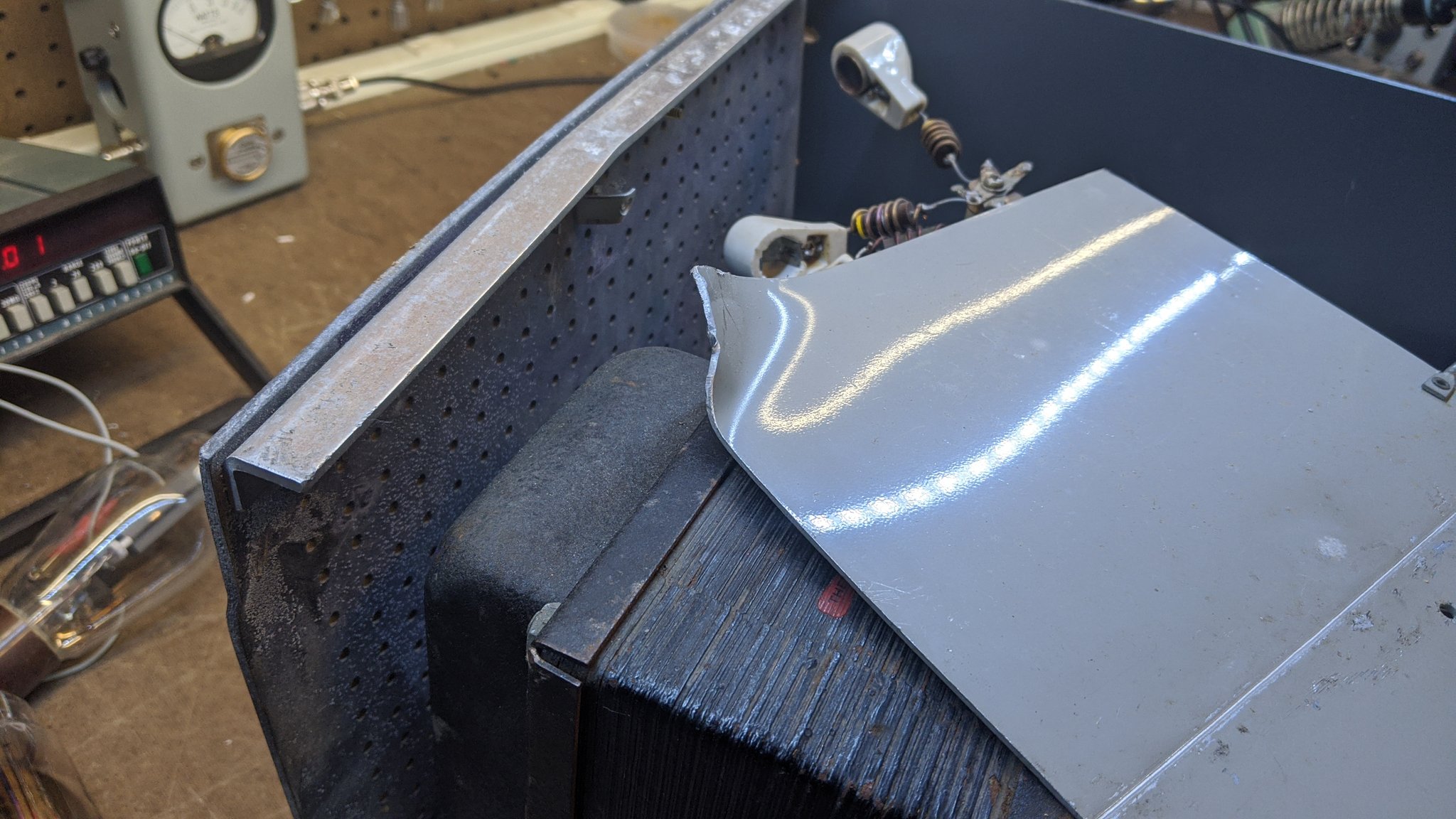

It was pretty rough, missing a few parts, and the chassis was bent up.

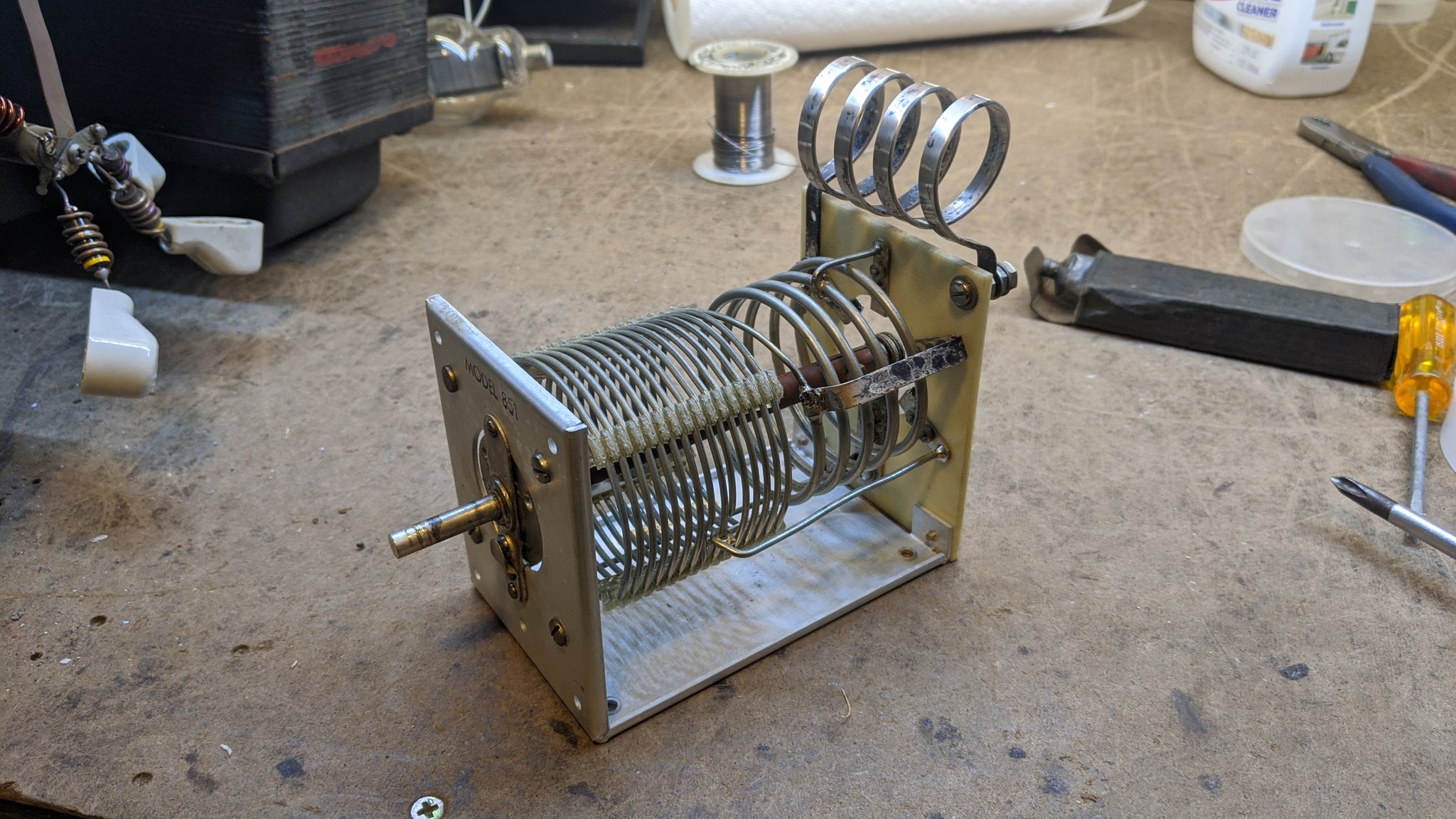

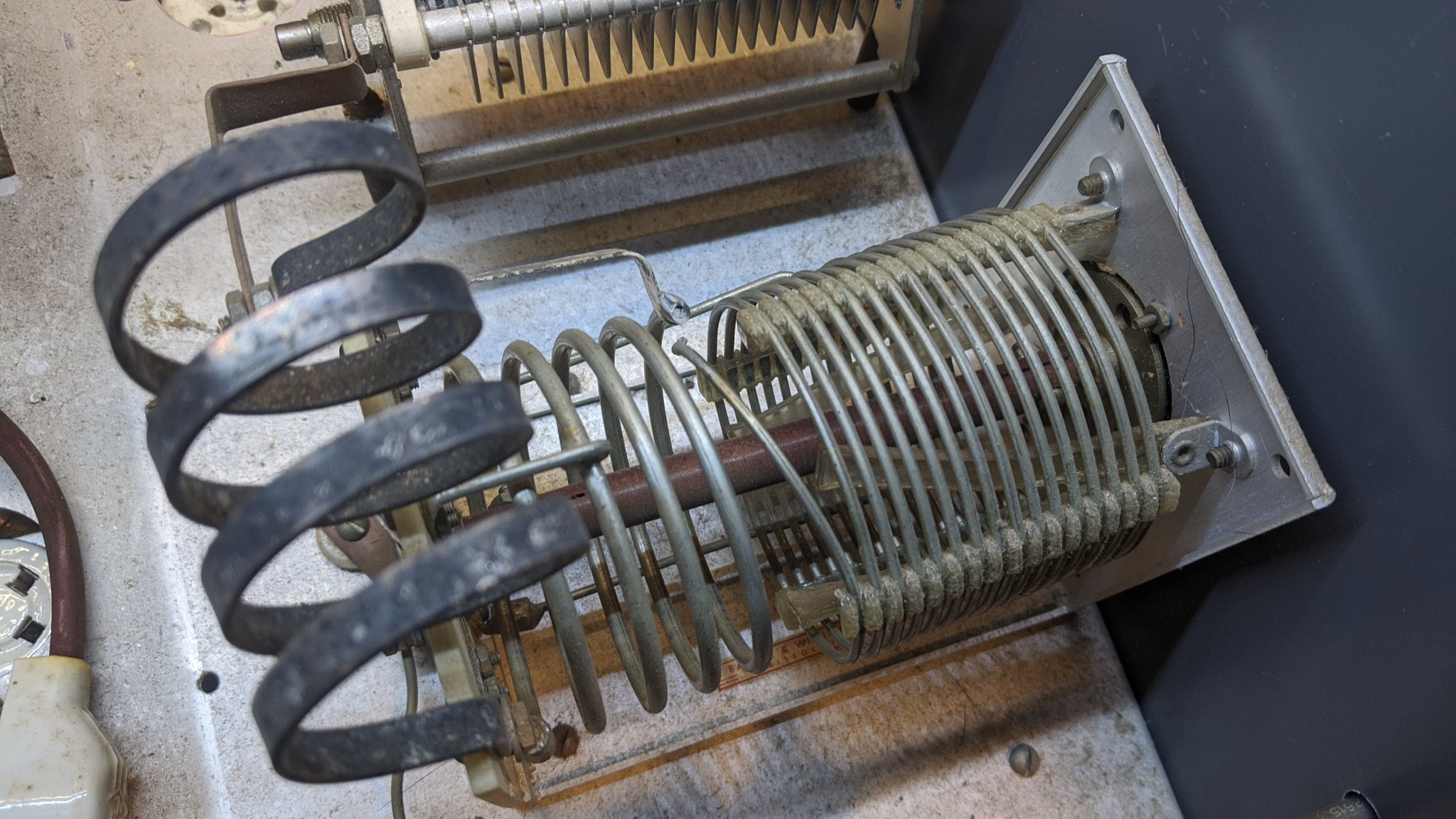

The Barker and Williamson 851 tank coil was falling apart, mostly because of the deteriorating plastic supports.

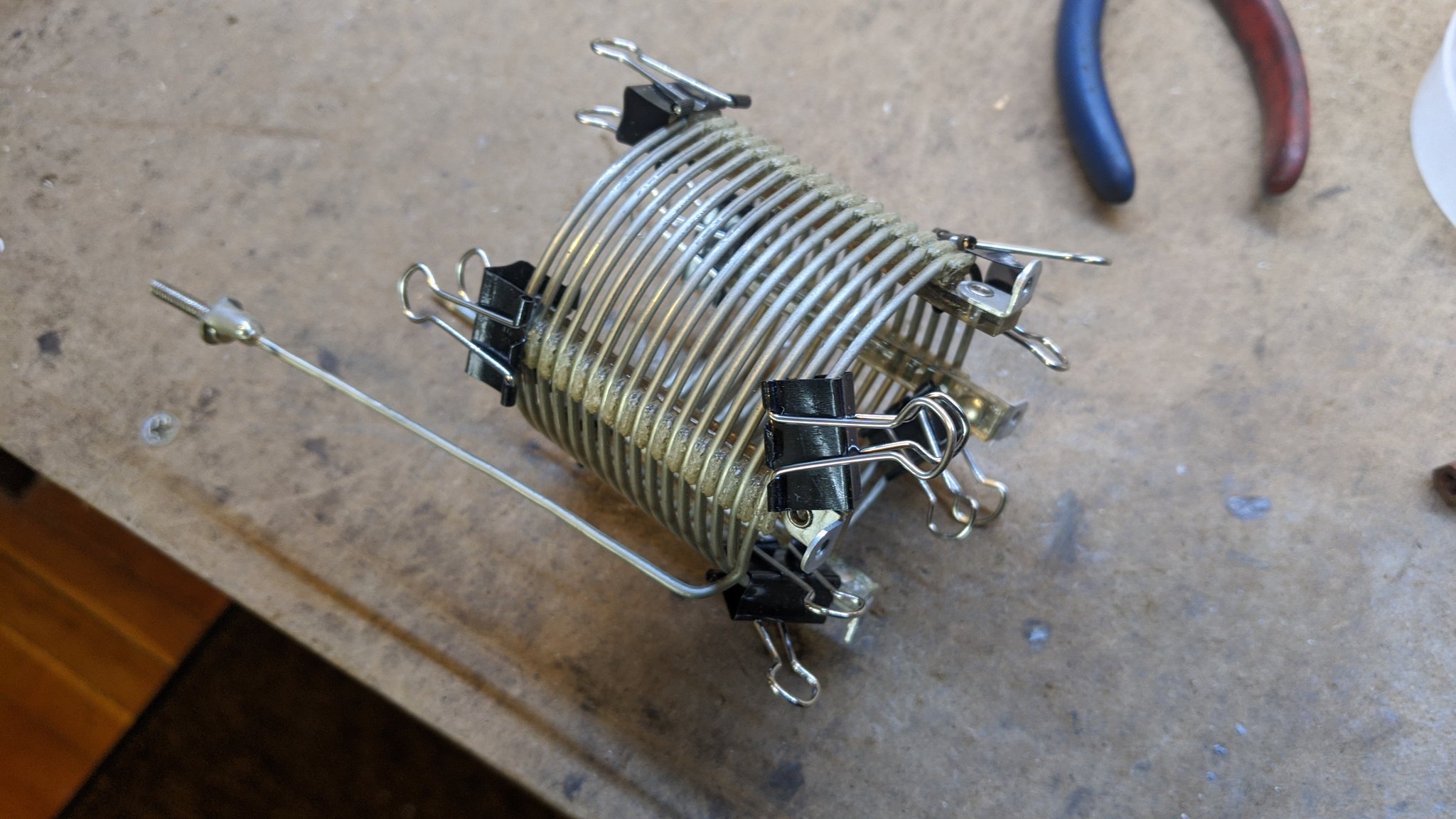

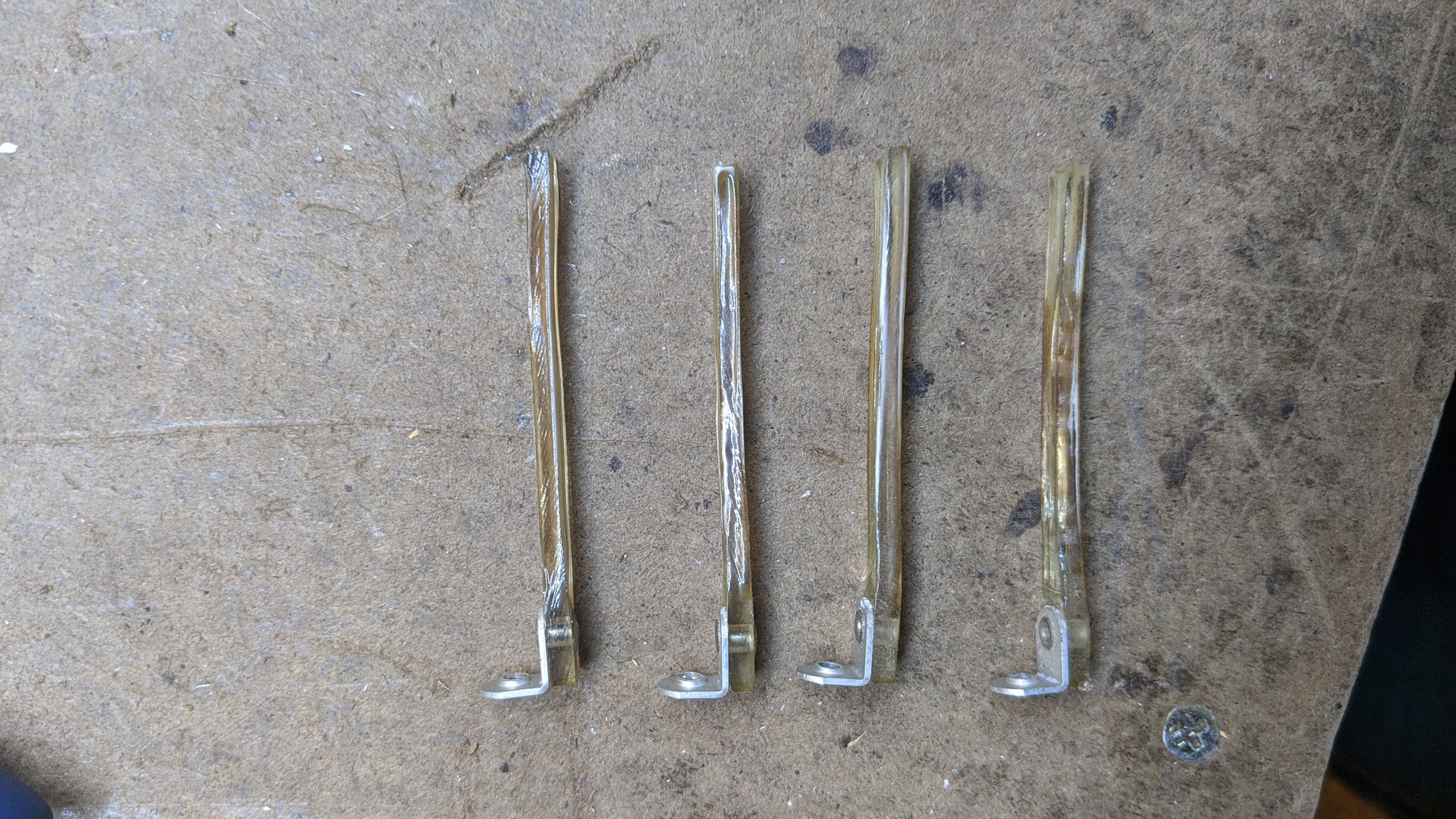

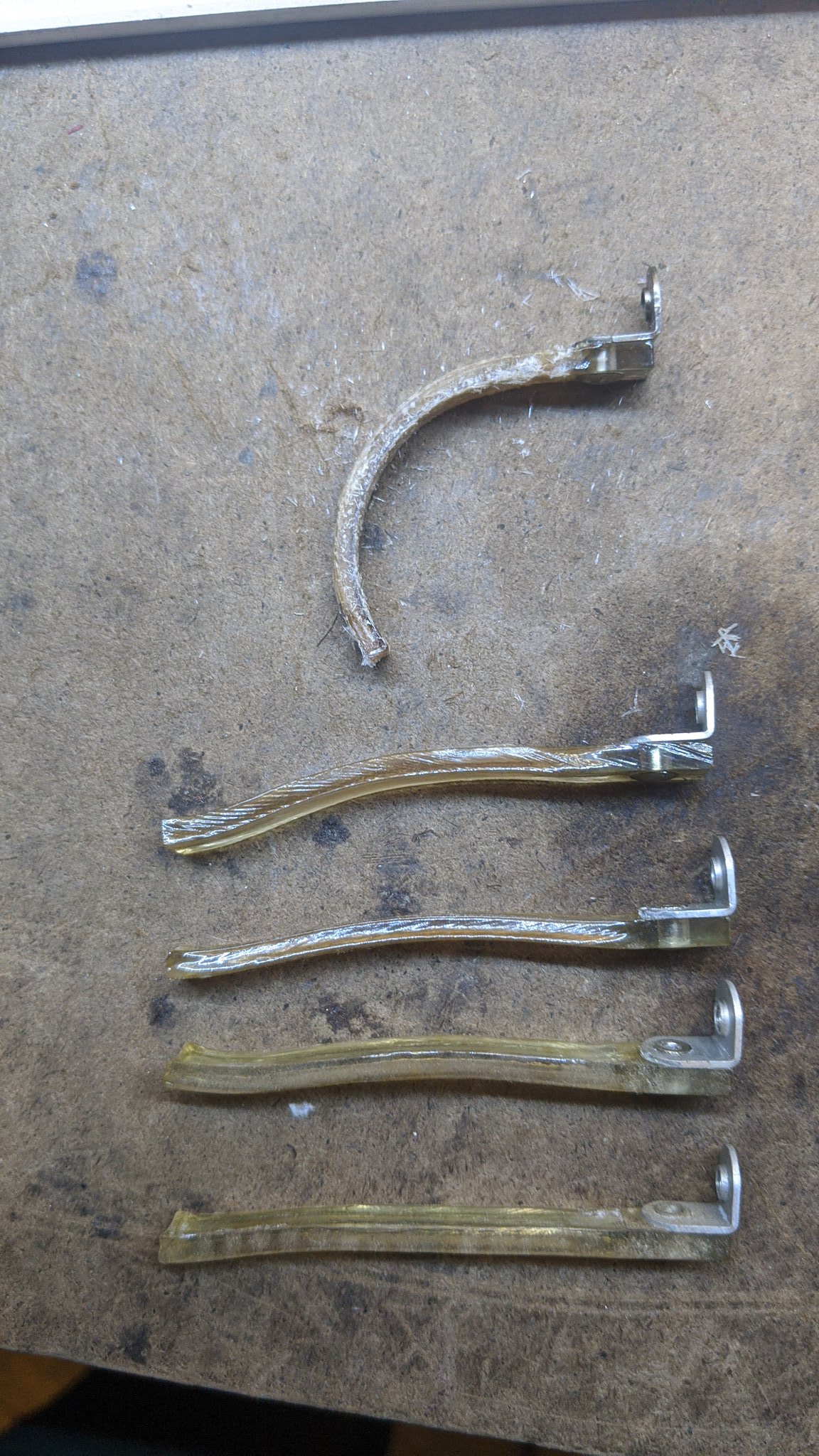

I was able to soften the supports with a heat gun and straighten them.

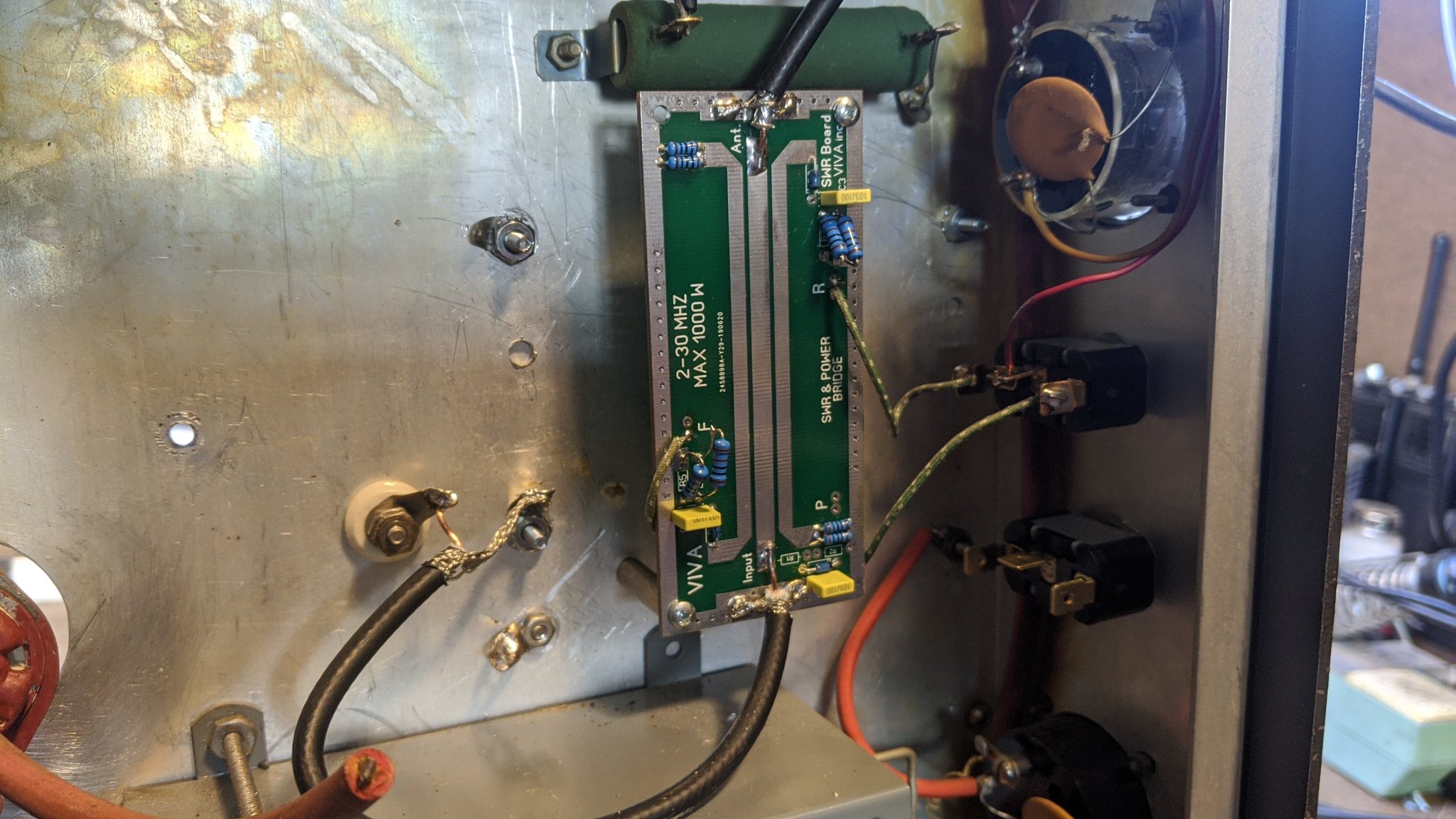

I added an SWR bridge.

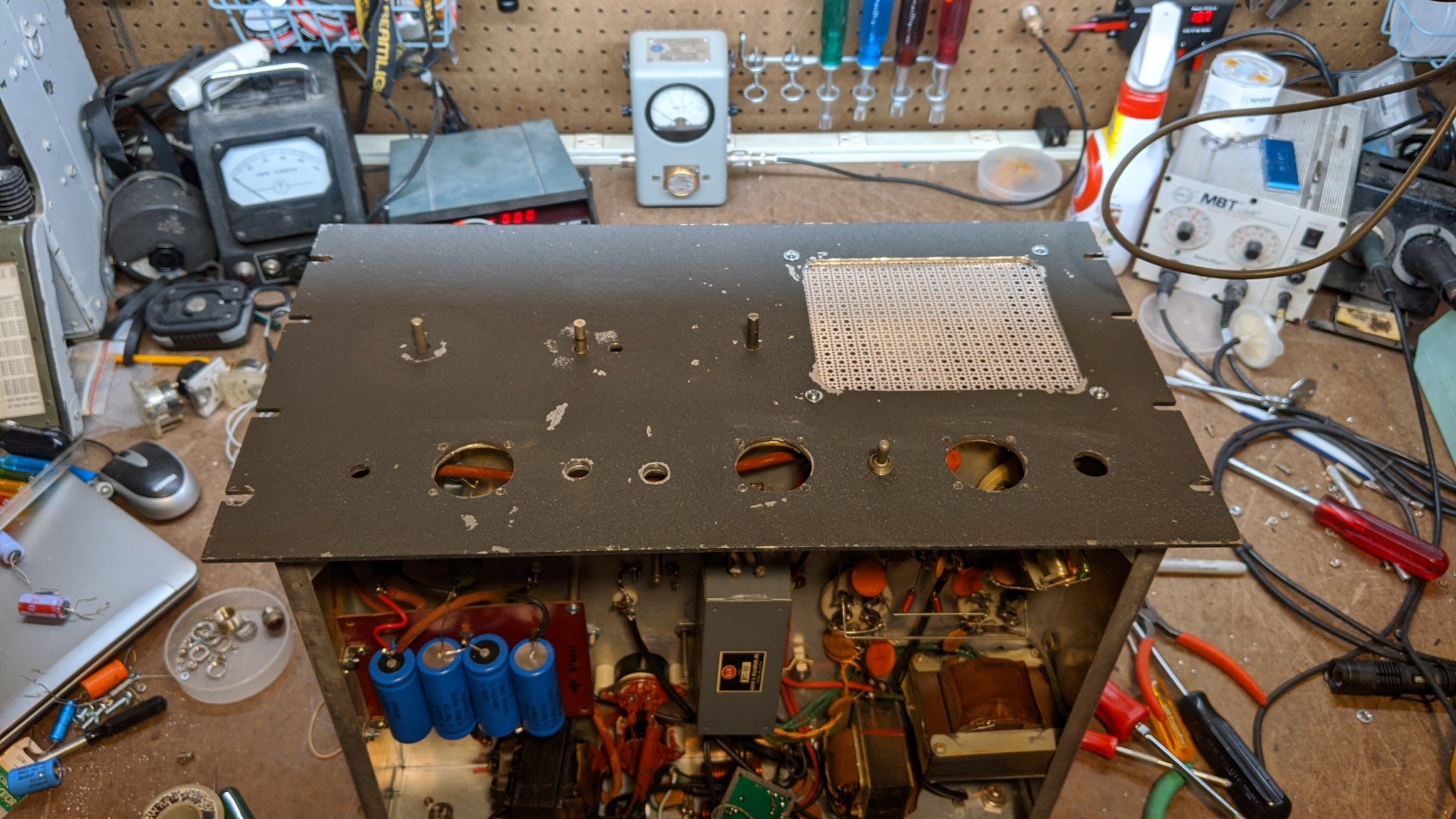

Starting work on the front panel. I wanted to be able to see the plates of the tubes so I installed a window.
One of the original 811A's had overheated severely at one time.

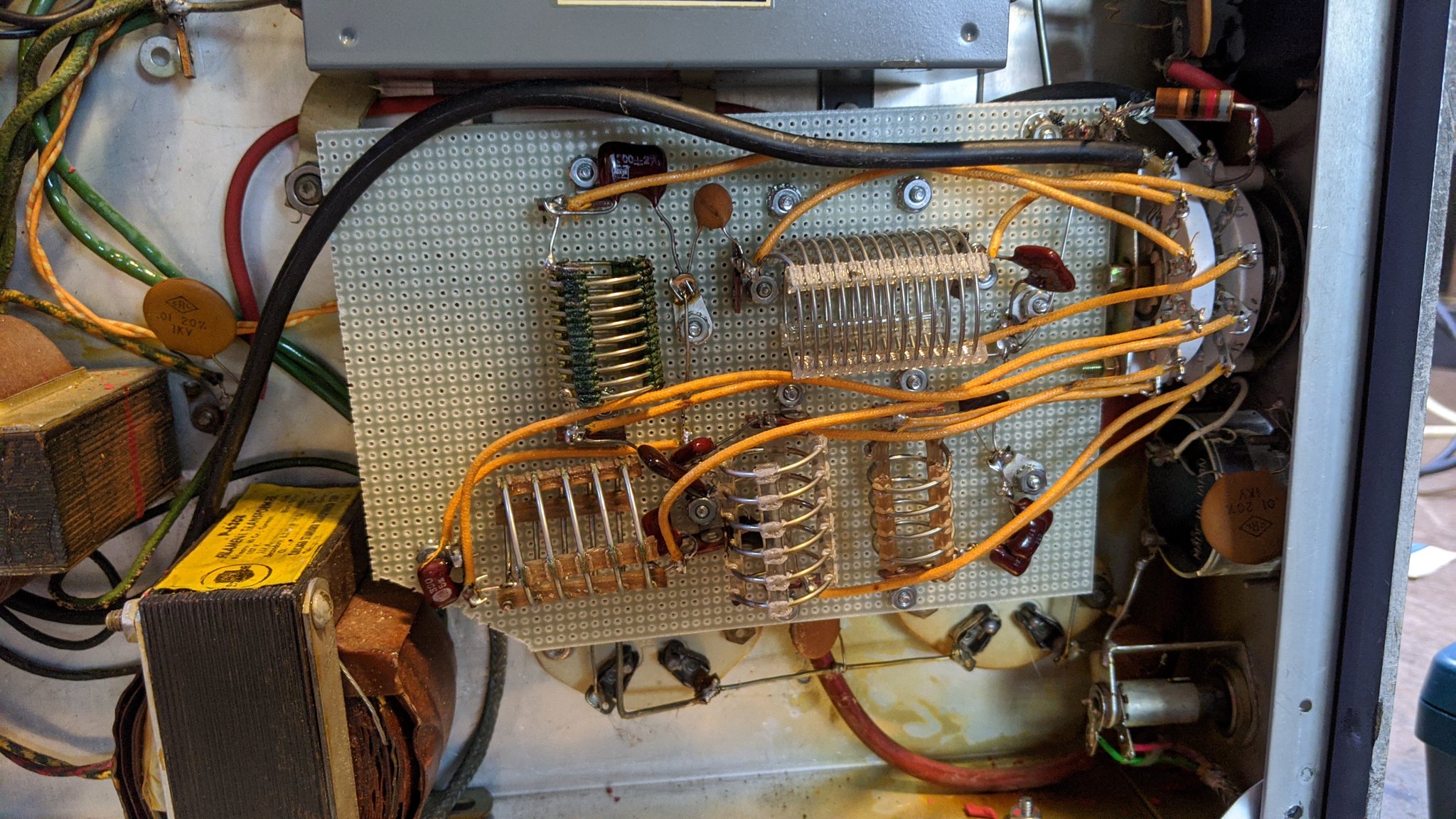

I decided to add a tuned input to the amp.

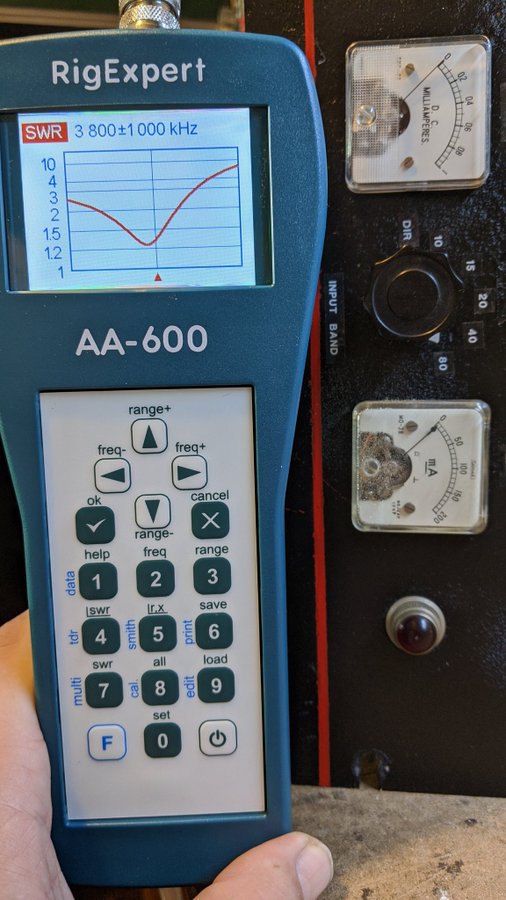

The RigExpert made it easy to tune the input bands.

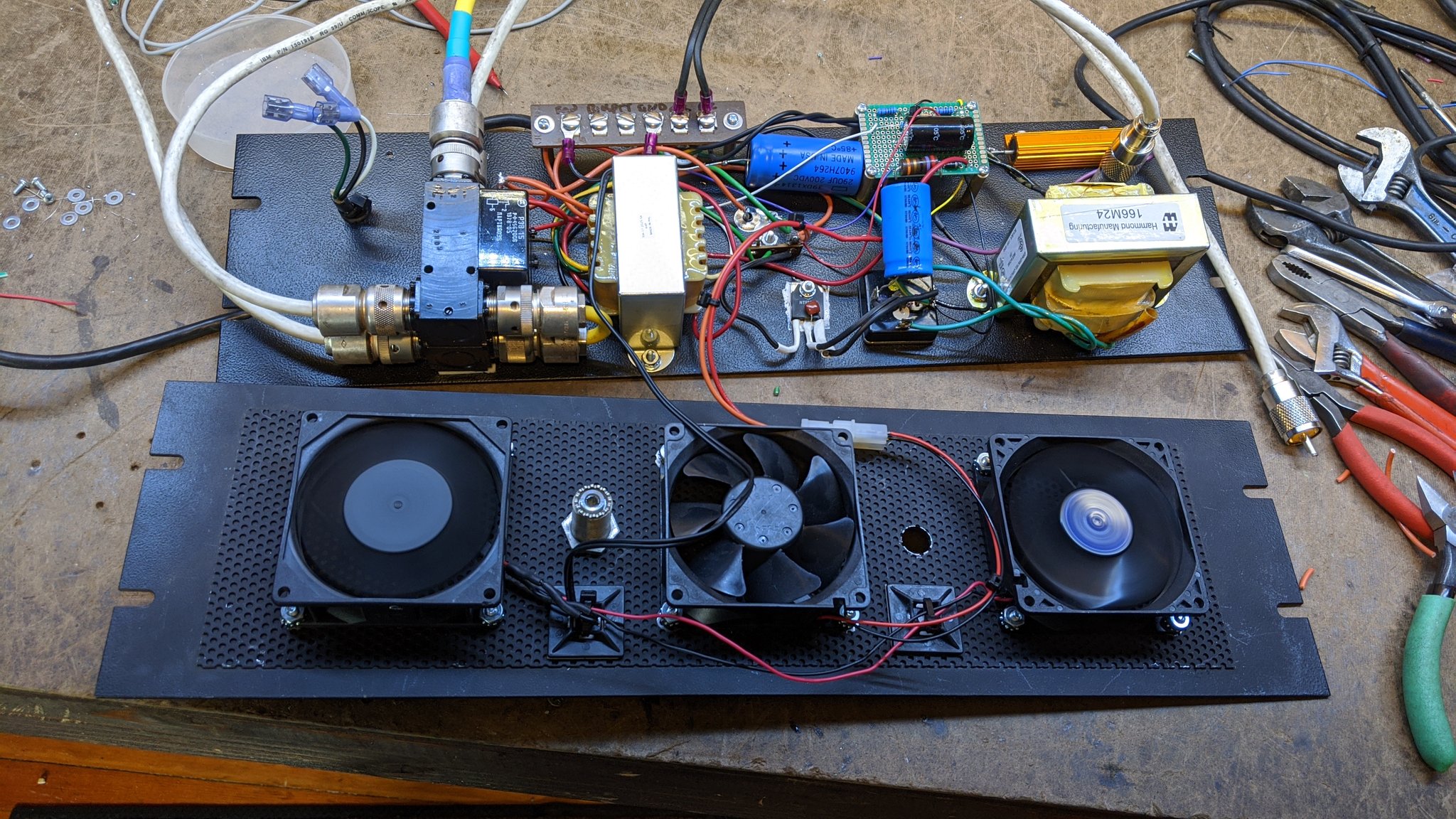

Since I was putting in all this work, I went ahead and put in a PTT relay circuit, fans, and a standby bias to cut-off the tubes during receive.

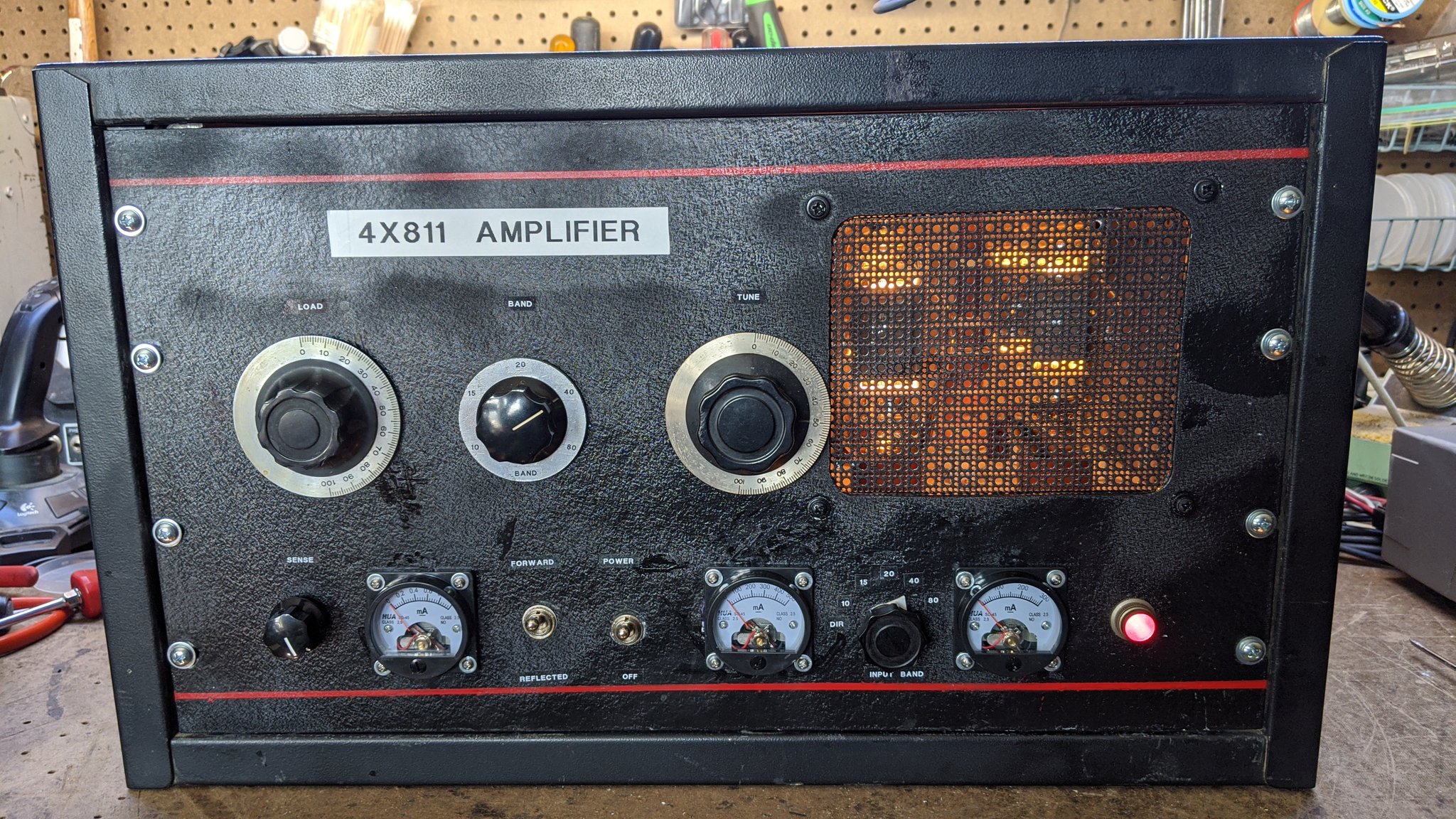

Done!
